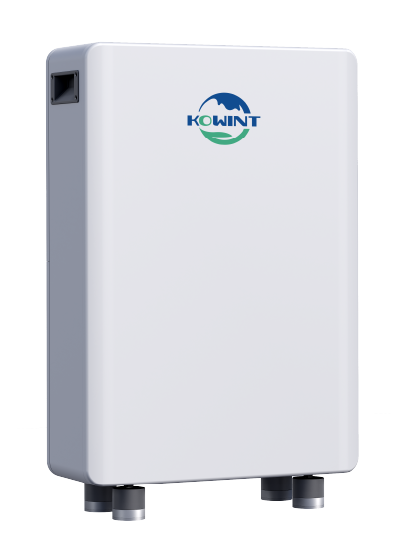

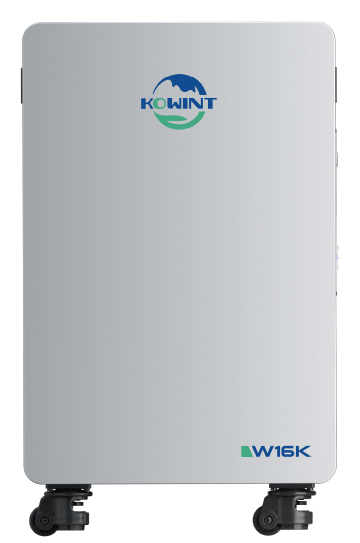

W16K

51.2V 314Ah LiFePO4 Battery

Composed of high-capacity 314Ah cells, delivering 16kWh of energy storage, the W16K LiFePO4 battery perfect for residential and light commercial applications. With its compact design and advanced features, it offers efficient power storage and ensures reliable energy performance.

    10-year warranty

    10-year warranty

    One-button startup

    One-button startup

    Mounting: Wall/floor

    Mounting: Wall/floor

    Cloud platform

    Cloud platform

    IP65

    IP65

    314Ah Cell

    314Ah Cell

    8000 cycles

    8000 cycles

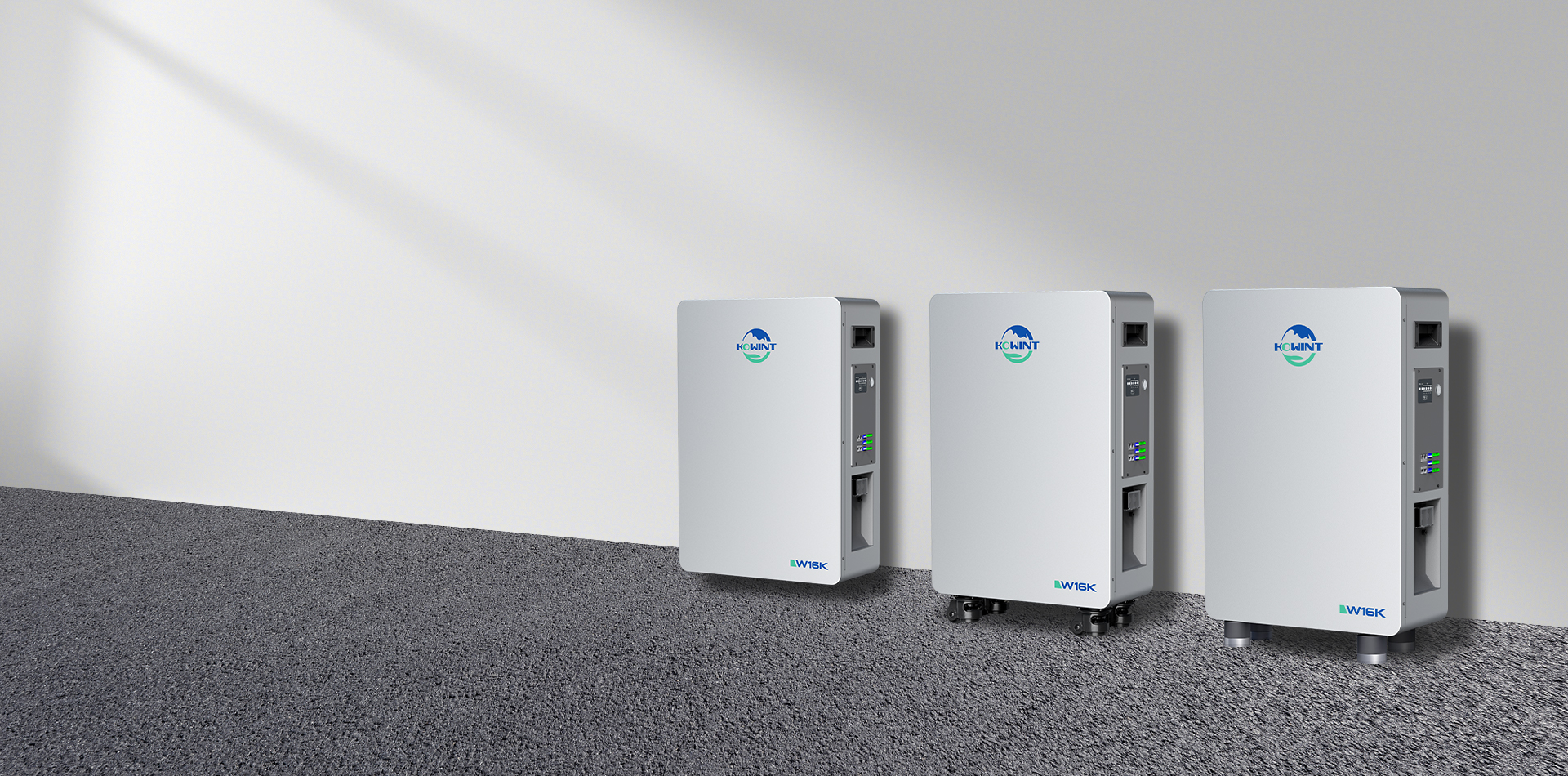

Compact Energy for Home Use

Compact Energy for Home Use

The W16K offers 16 kWh of efficient energy storage, ideal for residential applications. Its compact design saves space while providing reliable power and scalability for future needs.

Product Parameters

Product Parameters

Usage and Compatibility Parameters / Battery Parameters /
CommunicationRS485 / CAN / RS232
Compatible Inverter BrandSMA, Growatt, Solax, Solis, DEYE, Sofar, Voltronic, Studer, etc
InstallationWall-Mount In
Discharge Temperature (°C)- 20 ~ 50
Charge Temperature (°C)0 ~ 50
Storage Conditions-20 ~ 55°C(0 ~ 35°C Recommended)Up to 95 % RH, non-condensing, Initial So : 50 %
Battery CompliancesIEC 62619, UN 38.3, CEI 0-21, EN-61000
See Datasheet Get a quote
BrandKowint   Energy
Battery TypeLiFePO4
Rated Energy(kWh)16
Cell Capacity(Ah)314
Rated Voltage(V)51.2
Cell Model3.2V 314Ah
Combination Mode16S1P
Discharge Cut-off Voltage(V)43.2
Recommend Charding(V)56.8
Max. Charging / Discharging Curent(A)200
Primary Overcurrent Protection(A)210A@10S
Secondary Overcurrent Protection(A)250A@500mS
Cycle life≥8000 times @ 25°C
Dimension - W*D*H(mm/in)560*200*800
See Datasheet Get a quote
