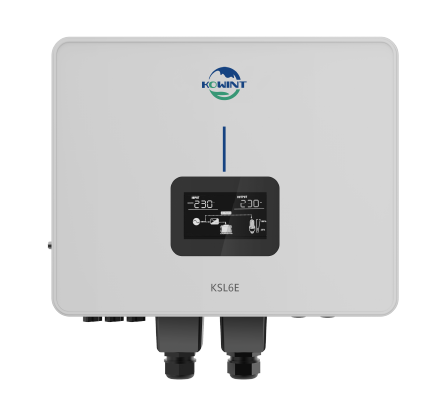

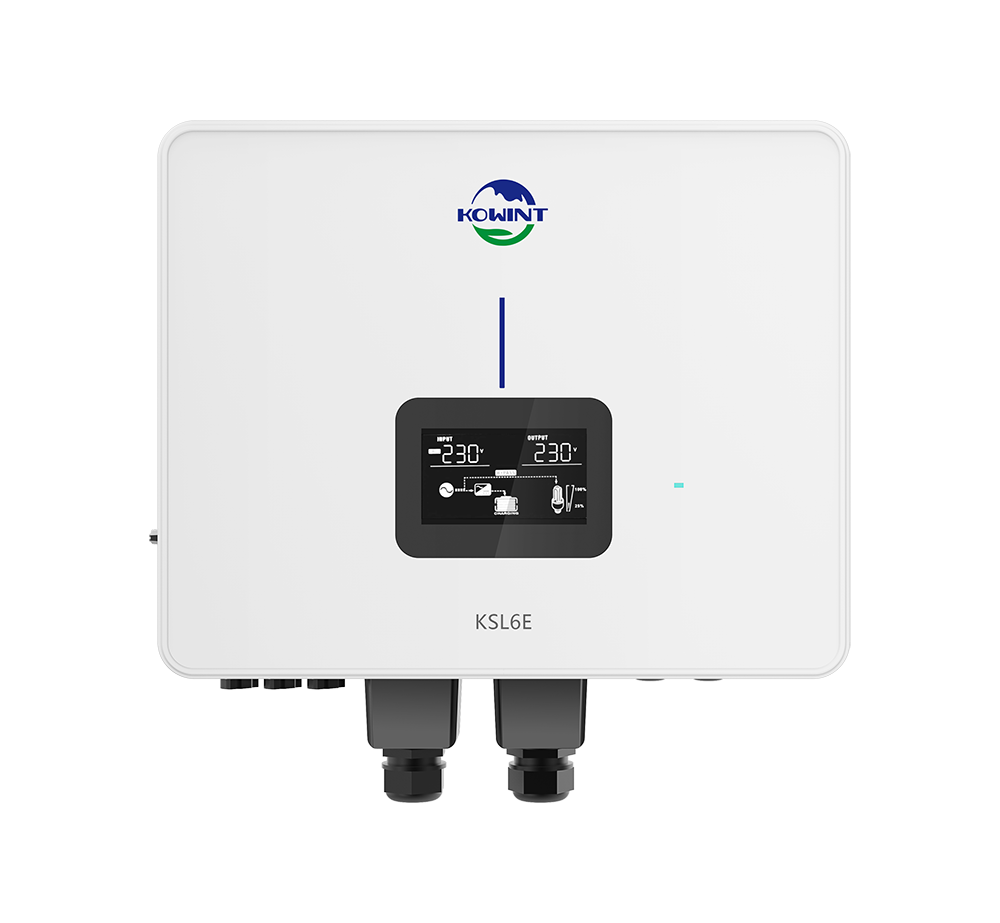

KSL-E On/Off-Grid Solar Inverter

EU LV Inverter

Delivering up to 8kW power output and supporting 6 parallel units, the KSL-E solar inverter ensures high efficiency and stable performance. With IP65 protection, real-time smart monitoring, and easy installation, it’s the perfect solution for residential solar energy systems.

Wall-mount

APP Remote Monitor

IP 65

VPP Coordination

Inverter Parameters

General Data / Battery Data / AC Output /

Battery Charge / Discharge Efficiency	96%
Max.Efficiency	98%
Europe Efficiency	97%
Mppt Efficiency	99.9%
Ingress Protection	IP65
Noise Emission(dB)	<35
Operation Temperature(°C)	-25 ~ 60
Cooling	Natural
Relative Humidity	0 ~95% (non-condensing)
Operating Altitude(m)	0~2000(No Derating Below 2000)
Dimensions-WDH(mm/in)	454.5200 467
Net Weight(kg/lb)	~18/~40
Topology	non-isolated
Self-consumption at Night(W)	<20
Interface	RS485 / WiFi / 4G / CAN / DRM

See Datasheet Get a quote

Battery Voltage Range (V)	40 ~ 58
Max.Charging Voltage (V)	58
Max.Charge / Discharge Current(A)	60/72/80 /92/100/120/160
Battery Type	Lithium / Lead-acid
Communication Interface	CAN

See Datasheet Get a quote

Rated Power (kW)	3/3.68/4/4.6/5/6/8
Rated AC Current Output to Grid(A)	13/16/17.4/20/21.7/26/35
Nominal Voltage / Range(V)	230 / 176 ~ 270
Frequency (Hz)	50 / 60
Power Factor	1 (0.8 leading ~ 0.8 lagging)
THDi	<3%
AC Grid Type	L+N+PE

See Datasheet Get a quote
