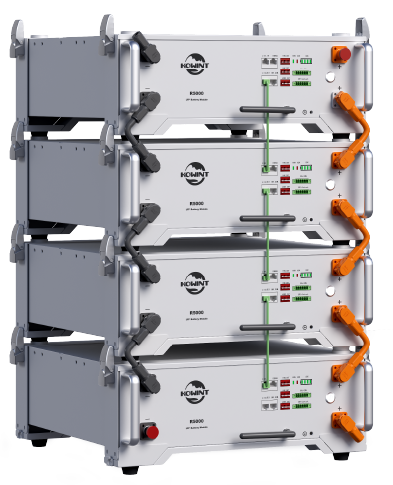

R5000

Rack-Mount1

Each cluster is up to 5.12 kwh(1 battery modules), maximum 31 units in parallel to get 518.72 kWh.

10-year warranty

Max. 31 units in parallel

Could platform

RS485 and CAN

Rack-Mounted

Product Parameters

General Parameters / System Characteristics / Battery Parameters /

Dimensio - WDH(mm/in)	440420132
Net Weight (kg/lb)	45
Enclosure	IP20
Operating Temperature(°C)	Discharging -20 ~ 50, Charging 0 ~ 50
Relative Humidity Range(RH)	Up to 95 %, non-condensing
Cooling	Natural Cooling
Communication	CAN, RS485, WiFi

See Datasheet Get a quote

BESS Certifications	UKCA, UL1973, CE, UN 38.3, IEC62619
Emission	FCC Part 15 Class B
Surge Protection	DC Type II
Warranty	10 Years

See Datasheet Get a quote

Nominal Energy(kWh)	5.12
Max. Continuous Charging / Discharging(A)	95
Nominal Capacity(Ah)	100
Nominal Voltage(V)	51.2
Recommend Charging Voltage(V)	56.8
Max. Charging Voltage(V)	58.4
Discharge Cut-off Voltage(V)	43.2
Cell Model	3.2V 100Ah
Combination Mode	1P16S
Initial Internal Resistanc (mΩ)	<50
Standard Charging Current(A)	50
Standard Discharging Current(A)	50

See Datasheet Get a quote
