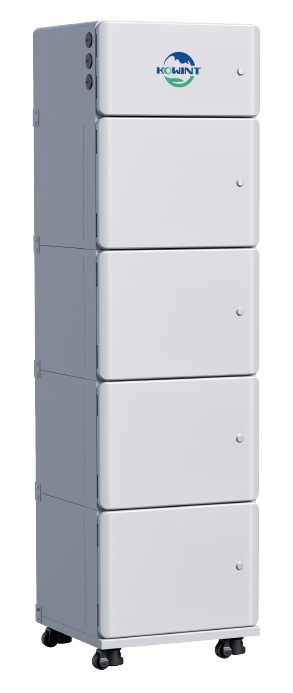

Indoor Cabinet R5000i-KOWINT ENERGY-Your Green Energy Manufacturer-KOWINT ENERGY-Your Green Energy Manufacturer

Capacity options from 15.36kWh to 61.44kWh for diverse indoor applications.

General Parameters / Battery Energy Storage /

Weight (kg)	165/300/435/570
Dimensions - W*D(mm)	663*635
Dimensions - H(mm)	955/1436/1917/2398
IP Rating	IP20
Cycle Life	8000 times @25°C, 0.5C, 80%DOD, 80%EOL
Designed Calendar Life	10 years
Safety Function	Over-charge, Over-discharge, Over-current, Low/High-temperature, Low-voltage, Short-circuit Protections
Operation Temperature	Discharge -20°C~50°C，Charge 0°C~50°C
Parallel Capacity	Max. 8
Communication	RS485, Wi-Fi, CAN

See Datasheet Get a quote

	R5000i-15/R5000i-30/R5000i-45/R5000i-60
Module Number	1/2/3/4
Battery Module Numbe	3/6/9/12
Nominal Energy (kWh)	15.36/30.72/46.08/61.44
Max. Charging/Discharging (A)	300
Nominal Capacity (Ah)	300/300/400/500
Peak for 10s (A)	300/300/350/350
Recommend Charging Voltage (V)	56.8
Max. Charging Voltage (V)	58.4
Discharge Cut-off (V)	43.2(Cells)
Nominal Voltage (V)	51.2(Cells)
Output Power voltage (V)	54(Steady Voltage)
