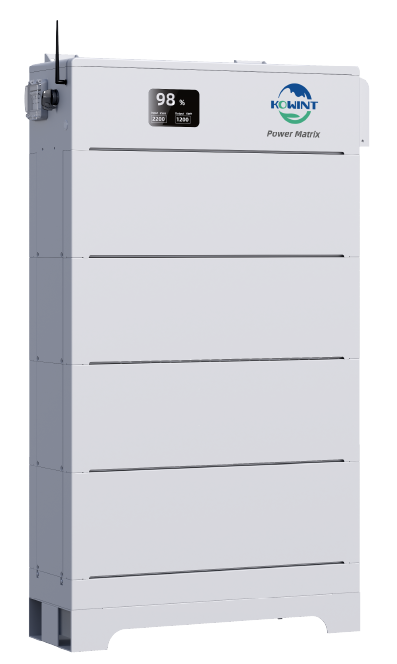

HV ESS Power Matrix

Power Matrix

Each cluster is up to 29 kW (6 battery modules),Nominal energy ranges from 10.24 to 30.72 kWh

Power Matrix

Power Matrix

General Parameters / BESS Specifications / System Characteristics /

Dimension - W*D*H(mm/in)

820*269*996/1282/1568/1854/2140

Net Weight(kg/lb)

151.5/211.5/271.5/331.5/391.5

Operating Temperature(°C)

-20~ 50

Operating Humidity

Up to 92 % non-condensing

Cycle Life

6000 times@25°C
Communication MethodCAN, RS485, WiFi
Warranty 10 Years


See Datasheet Get a quote

Battery Module

1P32S

Cell Capacity(Ah)

50

Module Amount

2/3/4/5/6

Nominal Energy(kWh)

10.24/15.36/20.48/25.60/30.72

Nominal Voltage(V)

204.8/307.2/409.6/512.0/614.4

Nominal Power(kW)

9.83/14.57/19.66/24.58/29.50

Operating Voltage Range(V)

172.8~233.6/259.2~350.4/345.6~467.2/432~584/518.4~700.8

Max.Continuous Current(A)

48
Max. Current≤75A@10S


See Datasheet Get a quote

BESS Compliances

IEC62619, UN38.3, MSDS, UKCA, CE, UL1973

Installation Method

Stack Mounting

Installation Scene

Indoor or Outdoor

Ingress Protection

IP55

Warranty10 Years


See Datasheet Get a quote
