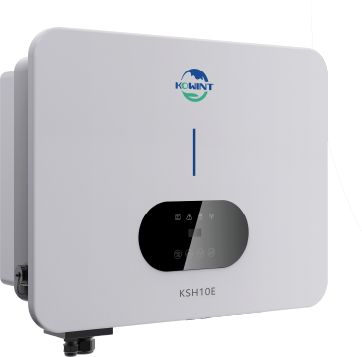

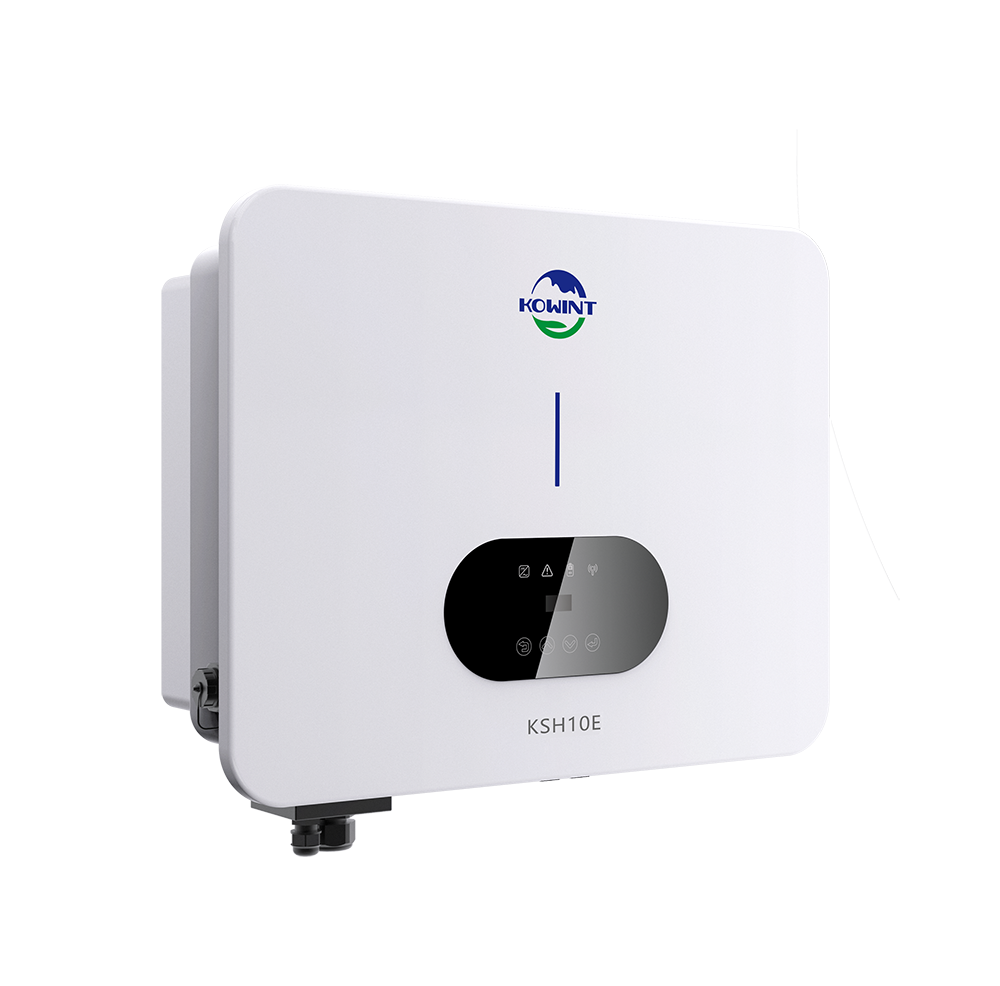

KSH Hybrid Solar Inverter

EU HV Inverter

The KSH inverter supports up to 10kW with advanced UPS-level shifting in <10ms. Designed for unbalanced loads, it offers high compatibility with PV modules, smart monitoring, and wall-mounted installation for space-saving and efficient solar power use.

Product Specifications

General Data / Battery Data / AC Output /

Dimension - WDH(mm)	520188412
Net Weight (kg/lb)	~27/~59.5
User Interface	LED + OLED
Communication	RS485 and USB or WiFi or 4G (Optional)
Operating Temperature Range(°C)	-25 ~ + 60
Relative Humidity	0 ~100%
Standby Self Consumption (W)	<15
Topology	Transformerless
Cooling	Natural
Enclosure	IP65
Noise(dB)	<35
Warranty	5 Years

See Datasheet Get a quote

Battery Type	Lithium
Battery Voltage Range(V)	160 ~ 700
Max. Charging / Discharging Current(A)	30 / 30
Communication Interface	CAN

See Datasheet Get a quote

Maximum Apparent Power(VA)	5500/6600/8800/10000/11000
Rated AC Power(W)	5000/6000/8000/10000/10000
Maximum AC Current(A)	7.6/9.1/12.2/14.4/15.2
Rated AC Current(A)	7.2/8.7/11.5/14.4/14.4
Rated AC Voltage / Range(V)	3/N / PE, 220 /380, 230 / 400; ±20%
Grid Frequency / Range(Hz)	50 / 60; ±5
Adjustable Power Factor(cosφ)	0.8 leading ~ 0.8 lagging
Output THDi(@Rated Output)	<3%

See Datasheet Get a quote
