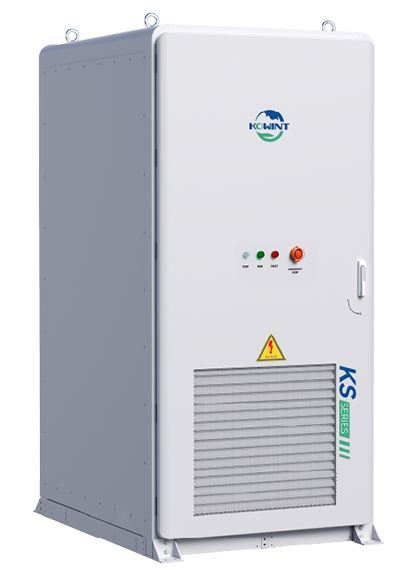

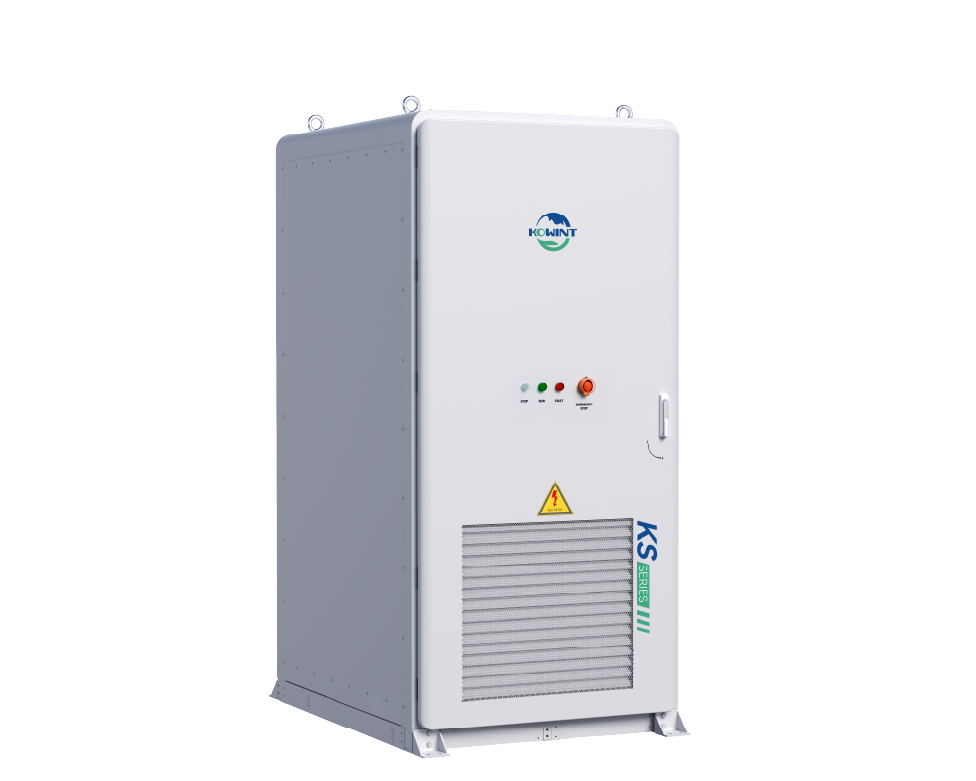

233kWh Liquid-Cooling Battery Energy Storage System

KS-233A

The KS-233A offers a 233 kWh capacity, designed for industrial and large-scale commercial use. It ensures uninterrupted power supply, making it ideal for high-demand businesses or critical infrastructure.

Intelligent EMS

Safe and reliable

Liquid cooling.

Product Parameters

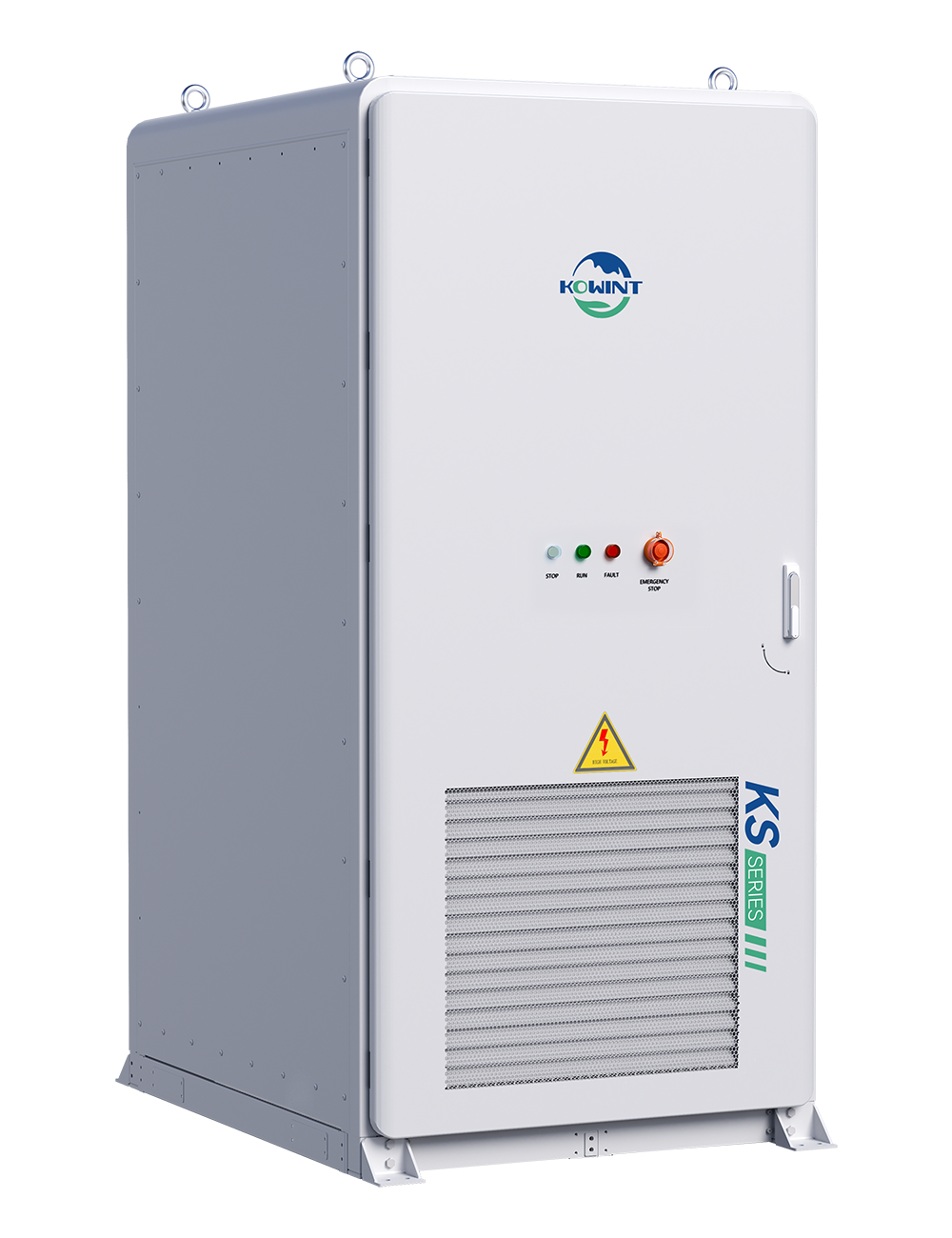

General Parameters / AC Output / Battery Energy Storage /

Battery Model	K-KS233125A0-US
Dimensions - WDH (in)	4357.393.4
Total Weight (lb)	5798(±10%)
Operation Altitude	≤4000m/13122ft(2000m/6561ft derating)
Noise Level @1m	<75 dB(A)
IP Rating	IP54
Operating Temperature(°C/°F)	–20~55/-4~131
Operating Humidity (RH)	0 to 95%, non-condensation
Storage Conditions	–20-30°C/–4-86°F, Up to 95% RH, non-condensation, State of Energy (SoE): 50% initial

See Datasheet Get a quote

Rated AC Output Power (kW)	125
Max. AC Output Power (kVA)	137.5
Rated Output Voltage (Vac)	480
Output Voltage Range (Vac)	-15%~10%(settable)
Rated Grid Frequency (Hz)	60(settable)
Max. Output Current (A)	165.4
Adjustable Power Factor	＞0.99
THDi	＜3%

See Datasheet Get a quote

Cell Type	LFP 3.2V / 280Ah
Module Combination	1P52S
System Combination (Modules)	5 in series
Capacity (kWh)	233
Nominal Voltage (V)	832
Operation Voltage Range (Vdc)	761~923
Discharge Depth	90% DoD
Thermal Management Mode	liquid-cooling
Thermal Control Management	Aerosol Extinguishing

See Datasheet Get a quote
